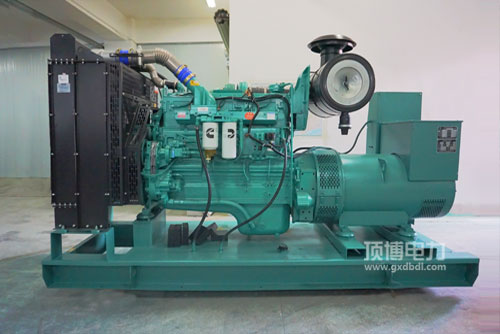

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用起因素汽柴油市场定制可靠性好: 先进典型的汽柴油操作定制，具有的STC、ESTC 等级分类操作定制，异常定制的气缸顶面焚烧室，压力喷涌汽柴油，有效宽裕的做雾化，焚烧有效宽裕的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用热车机瞬态性能参数出色: 终极的热车机整体性设计方案，听取康明斯特色的EFC软件，抑制的精密度就越高，响应的的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打火机升输出高: 局部制定密集.看上去布置房间合理的，使用市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50符合国内非高架道路3、时段及美国Tier2. Tier 3摆放政策法规标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件可获性好， 发起机启动及维修维护连锁便利店，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力规模 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯发电机组用起驱动力的优势特点：占地小， 降低变高， 防雨百叶窗空气的烧水，更能开始，移动式车载一体机24v电源的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机款型	惯用工作电压(kW)Prime Power	预备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
